A cracked lateral can turn a clear-pool filter into a sandblaster. If you see sand collecting on the pool floor near the returns, or a steady trickle of sand blowing into the pool after backwashing, the issue is often inside the filter tank. Sand filter laterals are small parts, but they control whether filter media stays where it belongs and whether clean water can return to the pool freely.
For homeowners, service technicians, and experienced DIY repair customers, replacing laterals is usually a manageable repair. The key is ordering the correct style, inspecting related internal parts, and handling the sand carefully so a simple lateral replacement does not become an avoidable plumbing or valve problem.
What Sand Filter Laterals Do

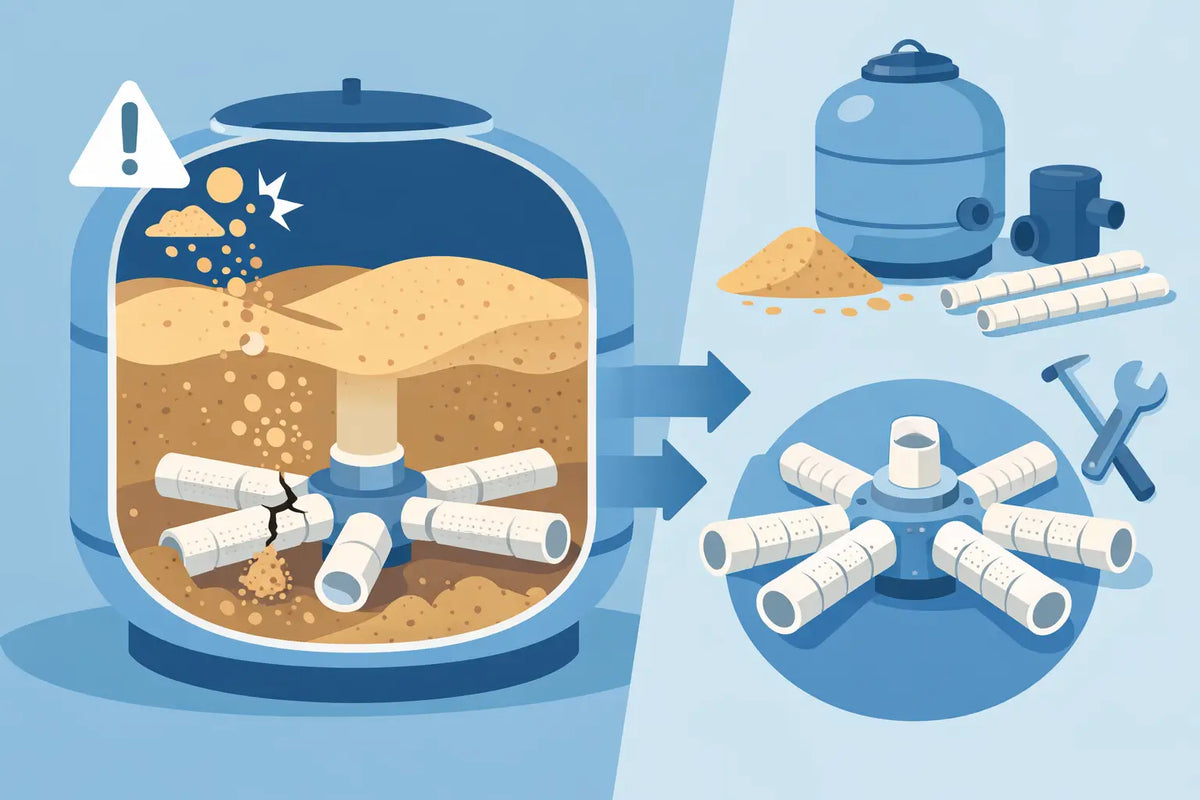

Laterals are the slotted plastic arms at the bottom of a sand filter. They connect to a central standpipe and hub assembly. During normal filtering, pool water is pushed through the sand bed, where debris is trapped. Clean water then enters the narrow slots in the laterals, travels up the standpipe, and returns to the pool.
The slots are designed to let water pass while retaining sand or approved filter media. If a lateral cracks, separates from the hub, or develops damaged slots, sand has a direct path into the return line. A broken standpipe, damaged hub, or loose lateral can create the same symptom.
During backwash, water flow reverses. Water moves down through the standpipe and laterals, lifting dirt from the sand bed and carrying it out through the waste line. That reversing action is why laterals need to be both properly fitted and in good condition. They work under pressure in two directions.
Signs Your Filter Laterals May Be Damaged
Sand in the pool is the most recognizable warning, but it is not the only one. Before opening the tank, rule out windblown sand, a damaged pool surface, or debris brought in by swimmers. Sand that repeatedly appears directly below the return fittings is much more likely to be filter media.
Other common signs include:
- Sand returns to the pool soon after a backwash cycle.
- Filter pressure behaves inconsistently or rises faster than usual.
- Water flow is weak even after proper backwashing and pump-basket cleaning.
- The multiport valve is set correctly, but the filter is not clearing cloudy water as expected.
Do not assume every sand-return problem is a lateral. A cracked or poorly seated standpipe is another frequent cause, especially if the filter was recently moved, serviced, or re-sanded. On a filter with a top-mounted multiport valve, inspect the standpipe carefully where it meets the valve. On a side-mount model, check the internal connection and hub assembly.
Choosing the Right Sand Filter Laterals
Laterals are not universal replacement parts. Their length, thread style, diameter, slot pattern, and connection method vary by manufacturer and filter model. Some thread directly into the hub. Others snap in, twist lock, or attach to a molded lateral assembly. A part that looks almost identical may still sit at the wrong angle or fail to seal correctly.
Start with the filter brand, full model number, and tank size. The model information is commonly found on the filter label, clamp band, tank body, or equipment manual. Measure an intact lateral only if the model information is unavailable. Include the threaded or connecting end in the measurement, not just the slotted arm.
It also helps to identify whether you need one replacement lateral or a complete set. If one lateral broke because the plastic has become brittle with age, the remaining laterals may be close behind. Replacing the full set costs more upfront, but it can make sense on an older filter when labor, media removal, and downtime are already part of the job.
For the most reliable fit, match original-equipment specifications whenever possible. A compatible aftermarket replacement can be a smart value when its application details match the exact filter model. Focus on fitment first, then price. The least expensive part is not a bargain if it forces a second teardown.
Before You Open the Filter Tank
Shut off power to the pump at the breaker, not only at the timer or control panel. Close isolation valves if your plumbing has them, then open the filter air-relief valve and confirm the pressure gauge reads zero. Never loosen a clamp, valve, or drain cap on a pressurized filter.
Drain the tank completely before removing the valve or lid. Depending on the filter design, you may need to disconnect unions, loosen a clamp band, or remove the multiport valve. Take a few photos before disassembly. They are useful when reconnecting plumbing, positioning the standpipe, or confirming the valve orientation.
Most lateral repairs require removing at least enough media to access the bottom hub. For a full lateral replacement, remove all sand or glass media from the tank. A wet-dry vacuum makes this job faster and cleaner, but use care around the standpipe so it is not cracked, bent, or pulled loose.
Filter sand is heavy. A typical residential sand filter may hold 150 to 350 pounds or more, depending on tank diameter. Plan for disposal or reuse based on local requirements and the condition of the media. Old media that is clumped, oily, hardened, or several years beyond its expected service life is usually worth replacing while the tank is open.
How to Replace Sand Filter Laterals
Once the media is removed, inspect the entire lower assembly. Look for split lateral arms, worn threads, missing end caps, damaged hub ports, and hairline cracks in the standpipe. Flex each lateral gently. Brittle plastic that shows whitening, cracking, or excessive movement should be replaced.
On many filters, the laterals fold upward to allow the assembly to pass through the tank opening. Remove the hub and standpipe assembly carefully, then replace the failed lateral or install the new set according to the filter design. Threaded laterals should be snug and straight, but do not overtighten plastic threads. Cross-threading or excessive force can damage the hub and create another leak path.
Reinstall the assembly centered in the tank. This step matters more than it looks. If the standpipe is off-center, it may not seat correctly into the valve or diffuser, and the lateral arms may not spread evenly across the tank bottom. Confirm that every lateral is fully extended before adding media.
Cover the top of the standpipe with a cap, tape, or a clean plastic cup so no sand enters it. Add water to the tank first, usually halfway up the laterals. The water cushions the assembly as media is added and reduces the chance of a lateral shifting or snapping under the load.
Use only the media type and amount specified for your filter. Standard #20 silica sand remains common, while some filters are approved for glass media or other alternatives. Do not mix media types unless the filter manufacturer specifically permits it. Media that is too fine can pass through the laterals; media that is too coarse can reduce filtration performance.
After filling the tank, remove the standpipe cover, reassemble the valve or lid, lubricate O-rings only with a pool-safe silicone lubricant, and tighten clamps evenly. Set the valve to Backwash before restarting the pump. Backwash until the sight glass or discharge water runs clear, then rinse for the valve's recommended interval before returning to Filter mode.
Avoid the Repairs That Create New Problems
The most common mistake is adding sand with the standpipe uncovered. Even a small amount of sand inside the pipe can reach the multiport valve, scratch the gasket, and cause internal bypassing. Another mistake is using too much sand. Overfilling reduces the freeboard space the filter needs during backwash, which can send media out the waste line or produce poor cleaning.
Do not use household lubricants, petroleum jelly, or pipe sealants on O-rings unless the equipment manufacturer specifically approves them. These products can swell or damage rubber components. Also avoid running the pump after discovering large amounts of sand in the pool until the source is identified. Continued operation can keep sending media through heaters, chlorinators, valves, and returns.
If the filter tank itself is cracked, the standpipe is broken at a critical connection, or the multiport valve is leaking internally, a lateral kit alone may not solve the problem. Those repairs call for a closer equipment assessment before ordering parts.
Keep Your Filter Working After the Repair
Once the repair is complete, record the clean filter pressure after the system runs for several hours. That number becomes your baseline for future backwashing. Most sand filters need backwashing when pressure rises about 8 to 10 psi above the clean reading, but always follow your filter manufacturer's guidance.
Avoid backwashing on a calendar just because it feels routine. Excessive backwashing can waste water and prevent the sand bed from filtering at its best. Backwash when the pressure and water flow tell you it is needed, then inspect the returns periodically for any sign of media.
The right replacement laterals, fresh compatible media when needed, and a careful restart can put your filtration system back to work quickly. When pool water cannot wait, getting the correct part the first time keeps a small internal repair from turning into days of cleanup and unnecessary equipment wear.
