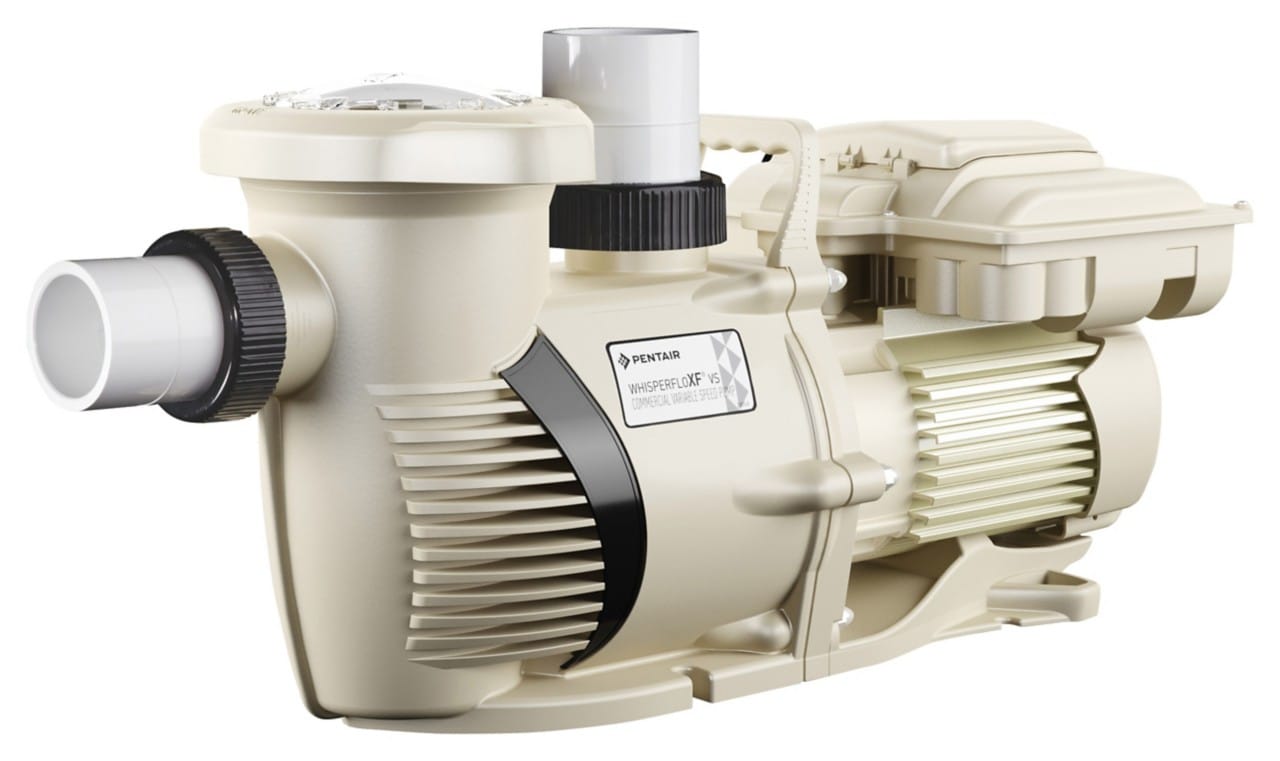

Pentair WhisperFloXF VS 5 HP Variable Speed Pump - 022035

The Pentair WhisperFloXF VS 022035 is a 5 HP variable-speed pool pump with an integrated motor and drive for commercial pools and large residential installations. It operates on single-phase or three-phase power without requiring a separate external drive.

Commercial and Large Residential Applications

The WhisperFloXF VS Commercial Pump provides a combined motor/drive solution for hotels, motels, apartments, condominiums (HMAC), and large residential installations. Its energy-saving technology offers an alternative to independent pump and external-drive setups. It is described as the first five-horsepower variable-speed pool pump to run on single-phase or three-phase power.

Key Features and Specifications

  • Integrated 5 HP motor and drive; no separate external drive required.
  • Versatile power input capability for a wide range of single-phase or three-phase power.
  • Speed or flow control for efficiency and pool performance.
  • External control capability through automation systems or relays.
  • Intuitive programming and operation.
  • Meets commercial codes and agency requirements.
  • Weighted Energy Factor (WEF): 5.0.
  • Total Horsepower (THP): 5.0.

Digital Controls and Programmable Speeds

Digital controls and proprietary software allow custom programming of pump speeds for filtering, heating, cleaning, spa jets, and other tasks. Four programmable settings can each be set to a speed from 300 to 3450 RPM, allowing operation to be matched to the flow requirements of each task.

Variable-Speed Technology and Energy Use

The motor and controllable variable-speed technology are designed to reduce energy use and operating costs. The existing product information states that savings potential may reach thousands of dollars over the pump's life and that reducing motor speed by 25% reduces power needed by 58%. Operating at the lowest speed needed for the task helps minimize pump energy use.

California Notice

Pumps and replacement motors that are single speed and one (1) Total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Warranty

Two-year manufacturer's warranty if installed by a licensed professional and picked up in-store only. 60 days if self-installed.

GTIN: 788379882730
SKU: 022035
Brand: Pentair
Sale price $3,289.00
Regular price $3,650.00
Shipping and tax are calculated at checkout.
In stock
  • Free Shipping On orders over $150
  • 30-Day Returns Easy return policy
  • Manufacturer Warranty Manufacturer warranty included

Pentair WhisperFloXF VS 5HP Variable Speed Pump - 022035

THE INNOVATIVE VARIABLE SPEED PUMP YOU NEED FOR YOUR COMMERCIAL POOLThe WhisperFloXF VS Commercial Pump is the first five-horsepower variable-speed pool pump that runs on single-phase or three-phase power. It’s an economical, combined motor/drive solution for both HMAC (hotel, motel, apartment, condominium) or large residential installations. The WhisperFloXF VS Commercial Pump provides sophisticated, energy-saving pump technology without the high costs typically associated with independent pump/external drive setups.

  • Integrated 5HP motor/drive; no expensive external drive required.
  • Versatile power input capability; runs off a wide range of single- or three-phase power.
  • Speed or flow control for maximum efficiency and pool performance*.
  • External control capability through automation systems or relays.
  • Intuitive programming and operation.
  • Meets commercial codes and agency requirements.
  • WEF: 5.0 THP: 5.0 Pumps and replacement motors that are single speed and one (1) Total HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609.

Digital Controls

Features variable speed capability, along with digital controls and proprietary software that allow custom programming of optimum pump speeds for specific tasks—filtering, heating, cleaning, spa jets, etc.

Low Energy UseFour programmable settings that can be set to any speed ranging from 300 to 3450 RPMs allowing you to program the exact flow requirements for each task, assuring the lowest energy use possible…adding to your savings.

Breakthrough Motor and Variable Speed TechnologyCombines breakthrough motor and controllable, variable speed technology that combine to drive down energy use and cost. Increased savings potential may be measured in thousands of dollars over its long life.

SLOWER IS BETTER FOR ENERGY SAVINGSWhat's the secret to minimizing your pump energy costs? The slower the better. Operate your pump at the lowest speed needed to get the job done. Reducing your pump motor speed by just 25% reduces power needed by 58%.Two year manufacturer's warranty if installed by a licensed professional and picked up in-store only. 60 days if self installed.

Key Features

  • Integrated 5HP motor per drive; no expensive external drive required.
  • Versatile power input capability; runs off a wide range of single- or three-phase power.
  • Speed or flow control for maximum efficiency and pool performance.
  • External control capability through automation systems or relays.
  • Intuitive programming and operation.
  • Meets commercial codes and agency requirements.
