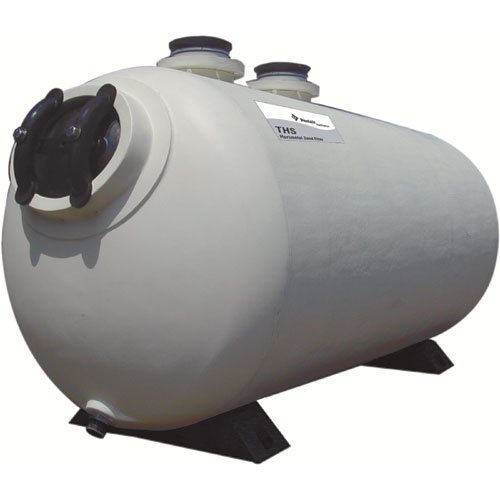

Pentair THS Sand Filter, 19.7 sq. ft. Horizontal (144272)

Pentair THS Series Horizontal Sand Filter, Effective Filtration Area: 19.7 sq-ft, Flow Rate: 295 gpm, Turnover Capacity: 8 hr - 141600 gal, All Sand Required: 2600 lb, Filter Media Sand Required: 2100 lb, Filter Media Pea Gravel Required: 500 lb, 42 Inch Diameter Tank, 72 Inch Length Tank## Pentair THS SERIES® Horizontal Sand Filter 13.5 SQ FT THS3461### PT# 144272The THS Filter is an NSF - approved 50 psi rated tank with flow rates up to 535 gallons per minute. the filter shell is manufactured from a unique and lasting composite laminate design that makes winding unnecessary. Paracote, a water based, environmentally- friendly coating, provides remarkable surface protection.### Features - Five sizes to 27 sq. ft. - Manway in front for easy access and smaller footprint - Manway with viewport available as option - 6 in. flanged connections, 4 in. victaulic on the THS 3461 - Optional manual, semi-automatic, and automatic backwash systems for one and two tank systems - Two backwash controllers to choose from - Influent manifold distribution to prevent clogging - NSF approved from 5-20 gpm/sq. ft. - Special order
