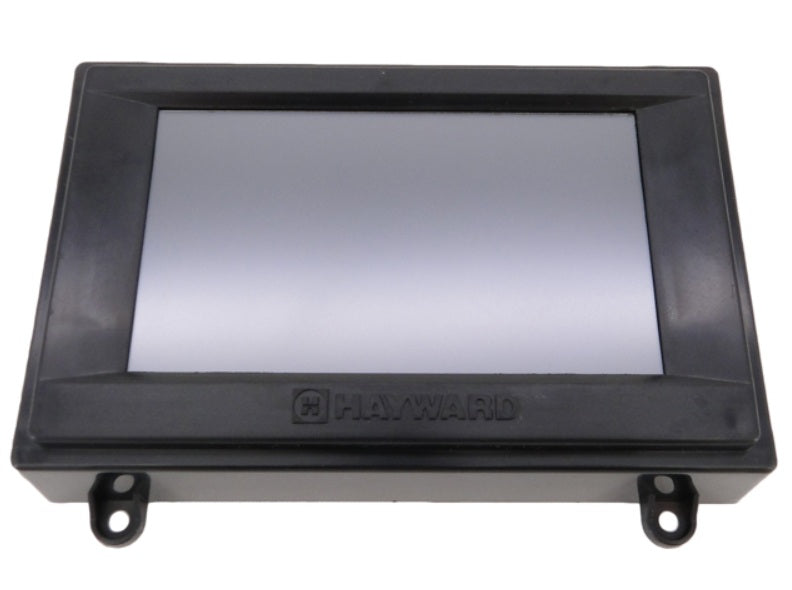

Hayward Omnilogic Display Board - HLX-LOC-DSP
The Hayward HLX-LOC-DSP is a replacement local touchscreen terminal for OmniLogic pool control systems. It replaces the controller’s local display used to navigate the system.
Compatibility
For Hayward OmniLogic pool control systems. Confirm the required replacement part for your controller before ordering.
Is HLX-LOC-DSP the same as HLX-LCD?
No. HLX-LOC-DSP replaces the complete local display assembly, including the LCD. HLX-LCD is the LCD-only replacement. Confirm which component your OmniLogic controller requires before ordering.
Installation
Power to the entire OmniLogic panel must be shut off before installation, as specified in Hayward’s installation manual.
Est. 4-6 business days for delivery.
-
Free Shipping On orders over $150
-
30-Day Returns Easy return policy
-
Manufacturer Warranty Manufacturer warranty included

Key Features
- Genuine OEM replacement part
- Fits on HLBASE and HLBASE-X288 models

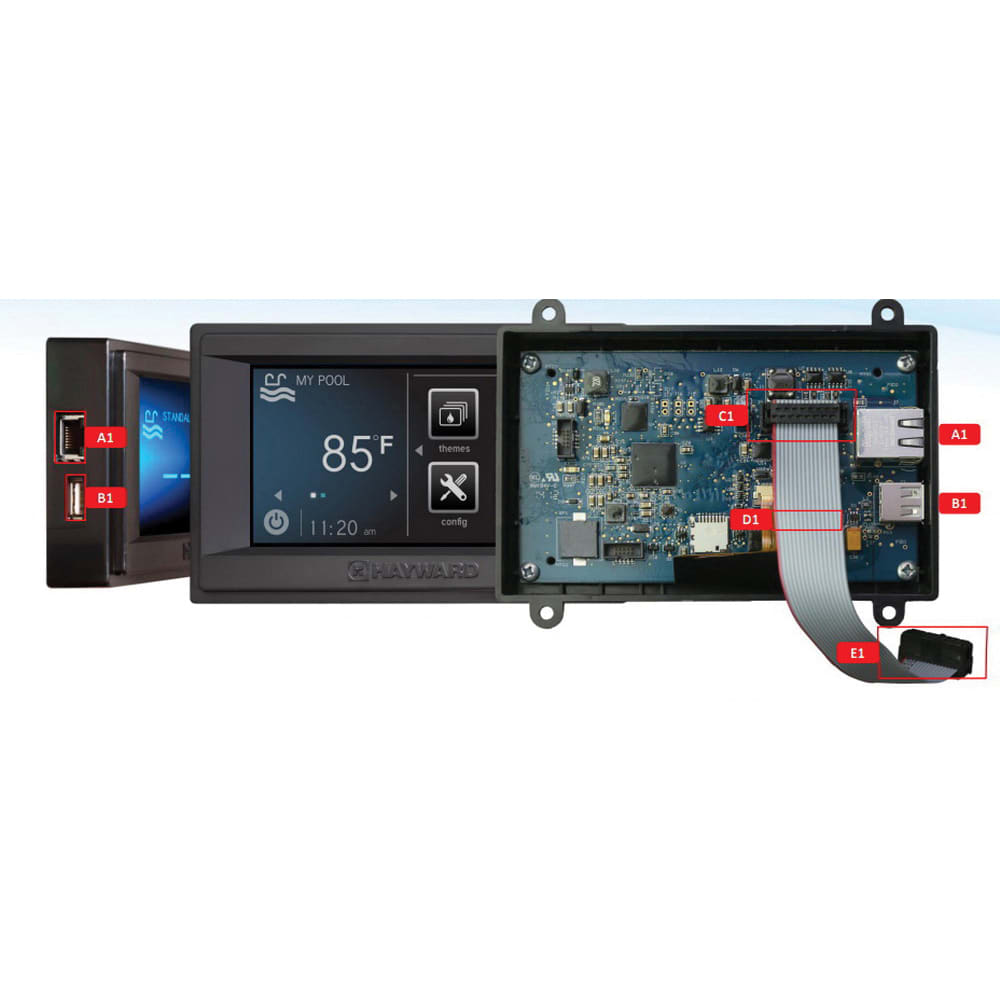

- Includes ribbon cable and LCD board
