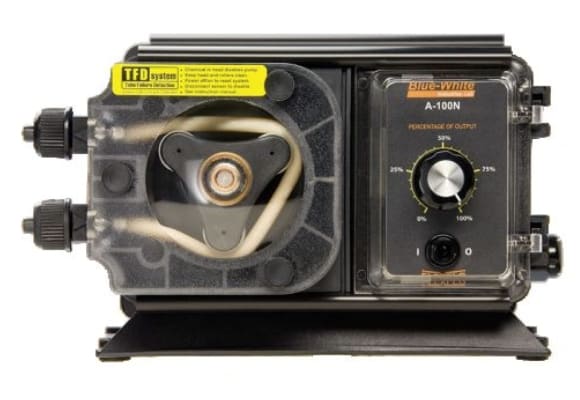

Blue White Adjustable FlexFlo Pump, 115v, 76.1GPD (A-1N20A-7T)

## Blue White FlexFlo A100NA Pump**Features:**- Peristaltic pump design does not have valves that can clog requiring maintenance.- Self priming - even against maximum line pressure. By-pass valves are not required. Cannot vapor lock or lose prime.- Outputs to 250 ml/min (95.1 GPD).- Output pressures to 100 PSI.- Output volume is not effected by changes in back pressure.- Patented pump tube design installs easily and stays centered on the rollers without manual adjustment.- Two pump tubes supplied with each pump. No extra tubing required.- Easy to use dial knob output control.- 20:1 turndown ratio.- Adjustable 60 second repeating interval timer. 3-60 second adjustable on time per 60 second cycle.- Built-in Tube Failure Detection system (TFD). Senses chemical in the pump head, shuts off the pump and activates an NPN open collector output.- Compatible with Blue-White’s output flow verification sensor system.- Durable housing of chemical resistant Valox (PBT) thermoplastic.**Specifications:**- Max. working pressure: 100 psig (6.9 bar)- Max. fluid temperature: 130 F (54 C)- Max. ambient temperature: 14 to 110 F/ -10 to 43 C- Output adjustment range: 5-100%- Duty cycle: Continuous- Maximum viscosity: 5,000 Centipoise- Maximum suction lift: 30 ft. Water 0 psig- Maximum Solids: 50% by volume- Enclosure: NEMA type 2, (IP21)- Approximate shipping wt: ...10 lb. (4.5 kg)Installation Manual (/manuals/A100NA-Installation-Manual.pdf)Technical Data Sheet (/manuals/A100NA-Tech-Data.pdf)
