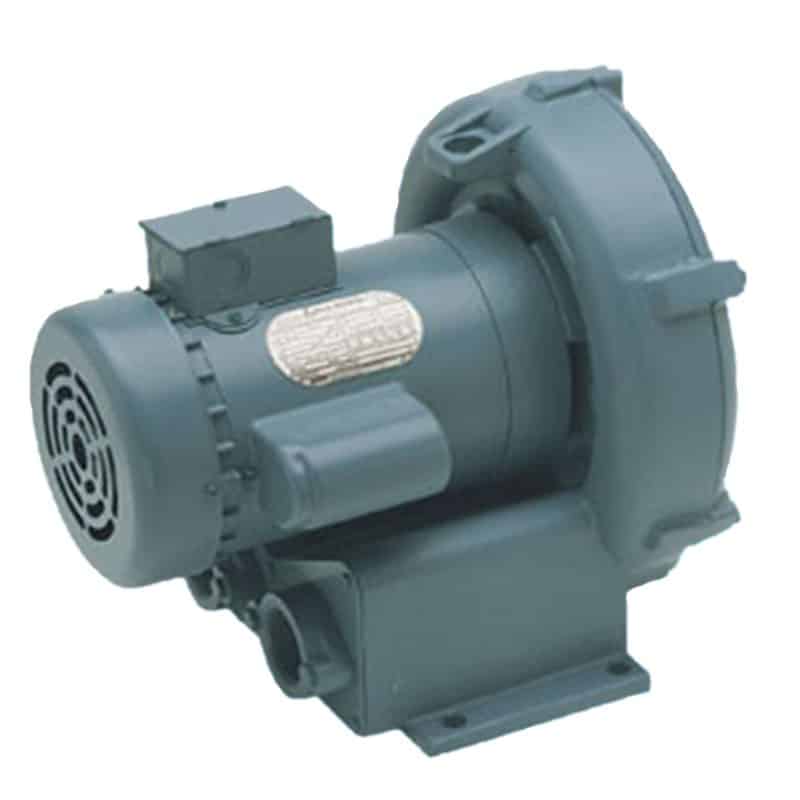

AMETEK Rotron Commercial 2 HP, 115/230v, 1 Phase, Air Blower (DR505AW58M)

ROTRON DR505AW58M motors are designed to handle a broad range of world voltages and power supply variations. Dual voltage 1 phase motors are factory tested and certified to operate on both: 104-115/208-230 VAC-1 ph-60 Hz and 100-110/200-220 VAC-1 ph-50 Hz - Manufactured in the USA - ISO 9001 and NAFTA compliant - CE compliant - Declaration of Conformity on file - Maximum flow: 105, 127, 160, 200 or 78 SCFM - Maximum pressure: 56, 58, 74, 69 or 88 IWG - Standard motor: 1.0, 1.5, 2.0, 3.0 HP, Spa Duty ODP - Cast aluminum blower housing, impeller and cover; cast iron flanges (threaded) - UL & CSA approved motor with permanently sealed ball bearings and Class B rated thermal protection - Inlet & outlet internal muffling - Quiet operation within OSHA standards#### Motor Options - Internation voltage & frequency (Hz) - Chemical duty, high efficiency, inverter duty or industry-specific designs - Various horse powers for application-specific needs#### Blower Options - Corrosion resistant surface treatment & sealing options - Remote drive (motorless) models - Slip-on or face flanges for application-specific needs
